Multidimensional Image Morphing

Fast Image-based Rendering of Open 3D and VR Environments

CGI'2023

(Journal Track)

Simon Seibt¹, Bastian Kuth², Bartosz von Rymon Lipinski¹, Thomas Chang¹ and Marc Erich Latoschik³

¹ Game Tech Lab, Nuremberg Institute of Technology
² Department of Computer Science, Coburg University of Applied Sciences and Arts
³ Human-Computer Interaction Group, University of Wuerzburg

Multi-morphing rendering results for the following image datasets:
"Farmland" (real scene), "Nature Walk" (real scene), "Living Room" (real scene), "Cave" (synthetic scene) and "Bistro" (synthetic scene).

Abstract

The demand for interactive photorealistic 3D environments has increased in recent years and in various fields such as architecture, engineering and entertainment. Nevertheless, achieving a balance between quality and performance for high-performance 3D applications and Virtual Reality (VR) remains a challenge. This paper addresses this issue by revisiting and extending view interpolation for image-based rendering, enabling the exploration of spacious open environments in 3D and VR. Therefore, we introduce multi-morphing, a novel rendering method based on a spatial data structure of 2D image patches, called the image graph. With this approach, novel views can be rendered with up to six degrees of freedom using only a sparse set of views. The rendering process does not require 3D reconstruction of geometry, nor per-pixel depth information: All relevant data for output is extracted from local morphing cells of the image graph. Detection of parallax image regions during preprocessing reduces rendering artifacts by extrapolating image patches from adjacent cells in real-time. Additionally, a GPU-based solution to resolve exposure inconsistencies within a dataset is presented, enabling seamless transitions of brightness when moving between areas with varying light intensities. Experiments on multiple real-world and synthetic scenes demonstrate that the presented method achieves high ``VR-compatible'' frame rates, even on mid-range and legacy hardware, respectively.

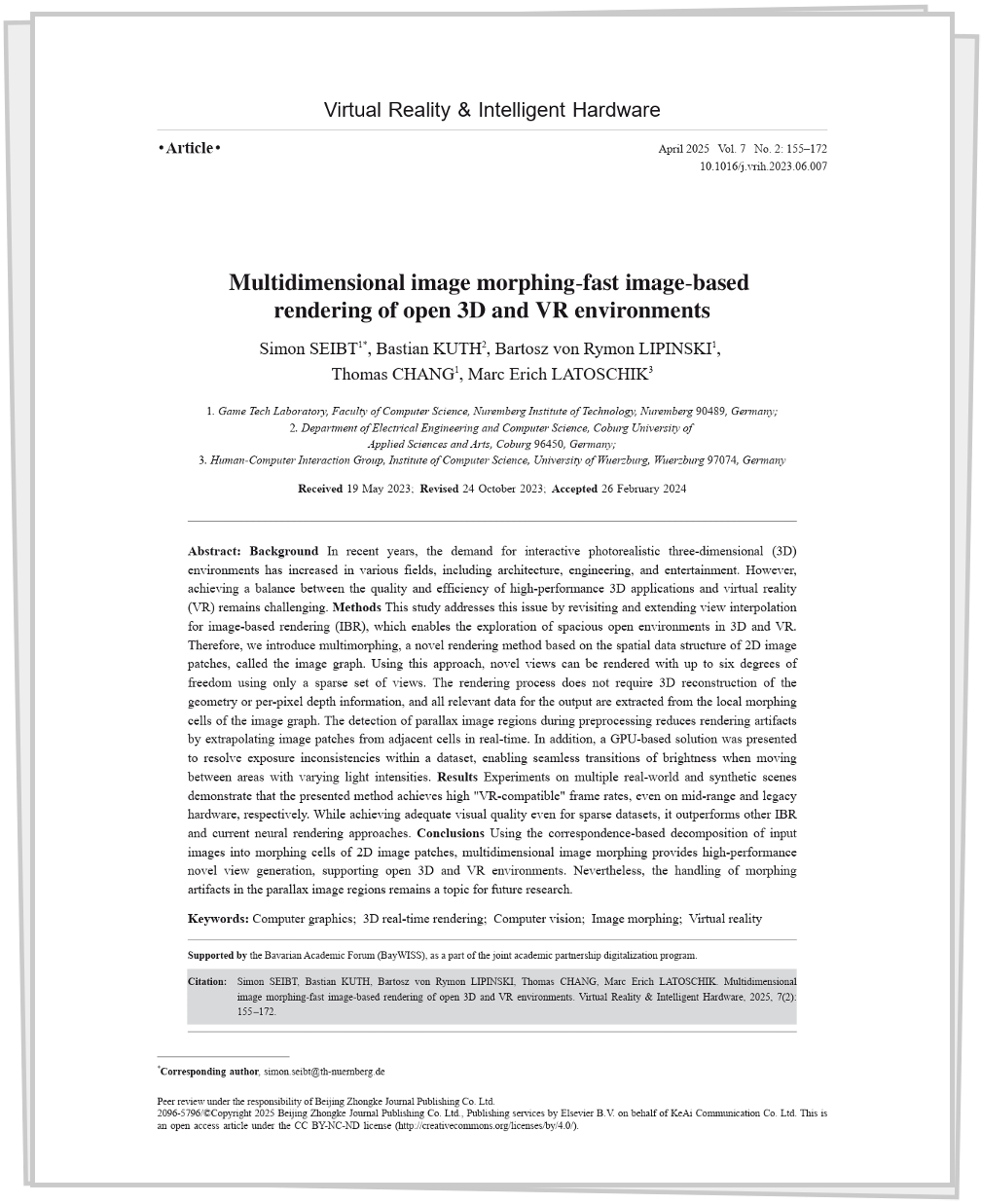

Paper

Pipelines

UML-based activity diagram of the preprocessing pipeline.

UML-based activity diagram of the rendering pipeline.

Visual Results

Demo Video

Visual comparisons

Visual comparisons of novel view generation for scenes: Farmland, Nature Walk, Livingroom and Cave

BibTeX

@article{Seibt2023Multimorphing,
author = {Seibt, Simon and Kuth, Bastian and Von Rymon Lipinski, Bartosz and Chang, Thomas and Latoschik, Marc Erich},
title = {Multidimensional Image Morphing - Fast Image-based Rendering of Open 3D and VR Environments},
journal = {Virtual Reality & Intelligent Hardware (Proceedings of Computer Graphics International 2023)},
note = {in press},
url = {https://ssrn.com/abstract=5006896},
}

References

[1]	Chaurasia G, Duchene S, Sorkine-Hornung O, Drettakis G. Depth synthesis and local warps for plausible image-based navigation. ACM Transactions on Graphics. 2013 June; 32:1–12.
[2]	Penner E, Zhang L. Soft 3D reconstruction for view synthesis. ACM Transactions on Graphics. 2017 November; 36:1–11.
[3]	Müller T, Evans A, Schied C, Keller A. Instant neural graphics primitives with a multiresolution hash encoding. ACM Transactions on Graphics. 2022 July; 41:1–15.
[4]	Tancik M, Weber E,Ng E, Li R, Yi B, Wang T, Kristoffersen A, Austin J, Salahi K, Ahuja A, Mcallister D, Kerr J, Kanazawa A. Nerfstudio: A Modular Framework for Neural Radiance Field Development. ACM Transactions on Graphics. 2021; 40:1–18.
